Arb Air Compressor Wiring Diagram Page 1 Line 17qq Com. The ARB Universal Compressor Bracket allows you to install a CKMTA CKMA or CKSA with optional accessories as needed to integrate your ARB Compressor into your vehicle.
Arb Compressor Wiring Tacoma World
The compressor and locker will be controlled by two switches in my SwitchPros switch panel.
Arb twin air compressor wiring diagram. Tapped into the gray wire coming off the wiper defroster. Connect the ARB hose to the quick connect coupler ideally the connection to the coupler should be made before turning the compressor on or the pressure built up by the compressor might make the connection difficult. First Name Bill Joined Mar 12 2018 Messages 2072 Reaction score 4081 Location Middle Tennessee Vehicles 2018 Sting Gray JLUR 15 Harley Tri glide 50 Dodge Rat pickup.
Wiring Harness Adapter For ARB Compressor. Arb Compressor Simplify The Wiring Jk Forum Com Top Destination For Jeep And Jl Wrangler News Rumors Discussion. Disassembling the cover removing the filter disk and using an.
The same principle applies to the air chuck or. For Nissan Murano AC Compressor Wiring. Wiring diagram for 220 volt arb single compressor simplified twin ckmta12 my diy portable air refrigerator ac clutch 2 wires hook up to pressure switch all of full diagrams Wiring Diagram For 220 Volt Electrical Mechanical Info Facebook Arb Single Compressor Wiring Simplified Jeep Wrangler Tj Forum Arb Twin Compressor Ckmta12 Wiring Tacoma.
The twin air compressor has a relay built in. Arb Compressor Wiring Tacoma World. They are also great if you are supplying your own air source but still need to wire up the electric solenoids.
I found the best place under the truck for the compressor is at the very front center of the bed above the driveshaft and rear diff. Arb Air Compressor Wiring Diagram Page 1 Line 17qq Com. So at the isolation switch power is coming from the red-yel supply wire which is spliced into power where it says to ignition goes to the isolation switch and when the switch is on passes through the switch to the red wire and then to the pressure switch through the pressure switch to the relay on dk.
I removed most of the supplied ARB wiring and custom wired for my application. I followed the wiring diagram to a tee. Arb Twin Compressor Wiring Questions 2018 Jeep Wrangler Forums Jl Jlu Rubicon Sahara Sport Unlimited Jlwranglerforums Com.
Per MTN4RNRs guide I opted to go with a blade mini add a fuse for the switch. Arb Air Compressor Wiring Diagram Arb Compressor Switch Arb Twin Air Pressor Motor Wiring 120 Volt Pressure Switch Wiring Air 665c Wayne Air Compressor Wiring Diagram Wiring. Each component should be placed and connected with other parts in specific way.
Arb Twin Compressor Wiring Tacoma World. Black in connector 2 is coming from ground connection in connector 1 to complete circuits on air solenoids high side switched and the switch backlights. ARB Compressor Wiring Harness are direct factory replacements for ARB air locker setups.
I just finished up installing and wiring up my ARB CKMTA12 high performance twin air compressor 12V. ARB AIR LOCKER Air Operated Locking Differentials 58 58 COMPRESSOR WIRING DIAGRAMS CKMA SERIES 12V 24V-40A VEHICLE LOOM 180409 SWITCH TERMINAL IDENTIFICATION UP. Air Compressor Wiring Diagram air compressor capacitor wiring diagram air compressor starter wiring diagram air compressor wiring diagram Every electrical structure consists of various different parts.

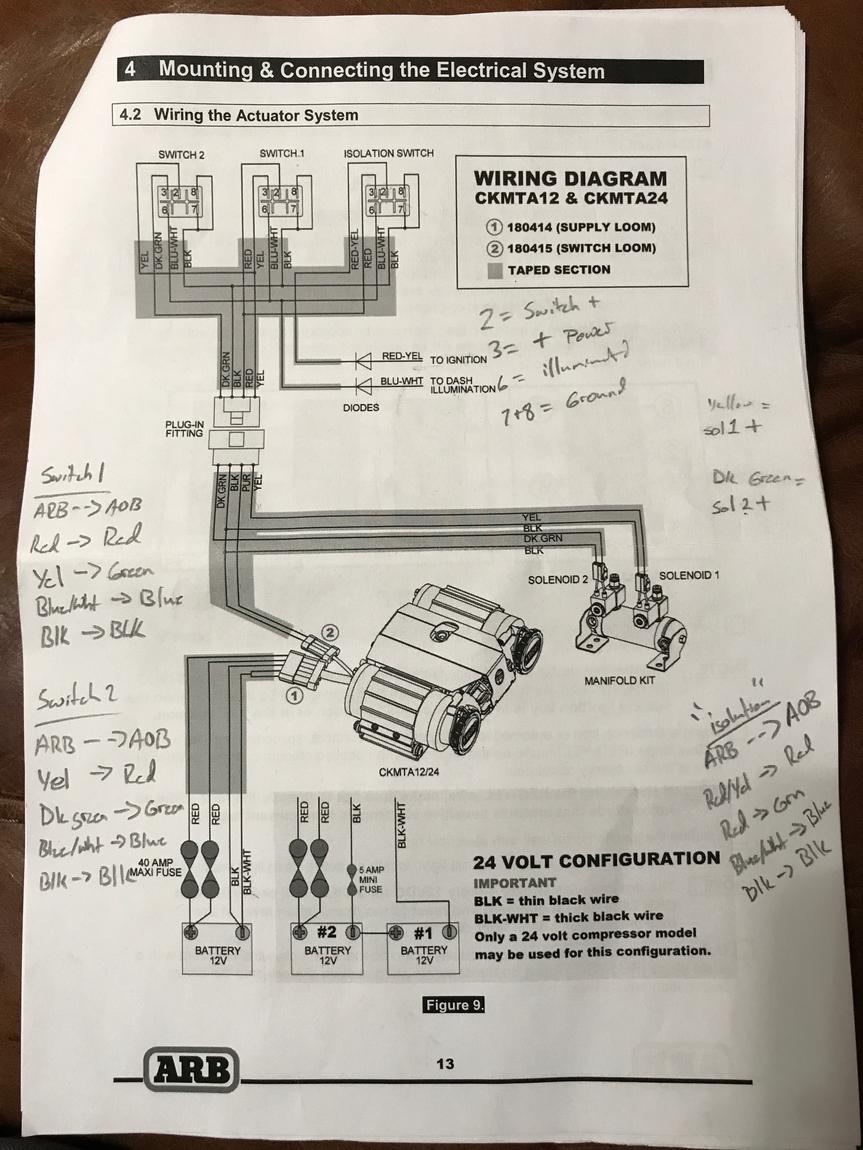

Page 15 air locker solenoids to an arb air compressor all connections can easily be set up using only the supplied wiring loom arb 180409 shown in figure 7 consulting the wiring diagram fig7 for wire colors and the switch terminal illustration fig8 plug each of the female spade terminals onto their appropriate switch terminal. If you look at the arb wiring diagram the power comes into the middle of the compressor switch red wire w yellow stripe and out right below it red that wire ts and sends power to the pressure switch to arm the compressor and then to the middle terminal of the rear switch. Diagram Arb Cksa12 Compressor Wiring Full Version Hd Quality Ddiagrams Am Ugci It.
If extra tightening force is required the air filter can be tightened by. Here are some images of the critical wiring junctions. So switching ground on 2 wont do anything here and as soon as purple gets 12V the compressor will run due to the relay coil being connected to ground via connector 1.
Extension tube will be screwed into the front of the compressor and the air filter will be screwed into the extension tube See section 27. Upside down image Wiring of the isolating switch harness to the ARB compressor switch per wiring diagram. If not the arrangement wont function as it should be.
The compact wiring harness does not use a relay. Blu energizing the relay turning the pump on. The bracket is a perfect solution for the bed of a pickup under the seat or the back of an SUV where space permits.
However when I flip on the compressor switch the button lights up and I hear a click at the. All my normal electronics that I spliced wires are working correctly and all indicator lights properly reset.
